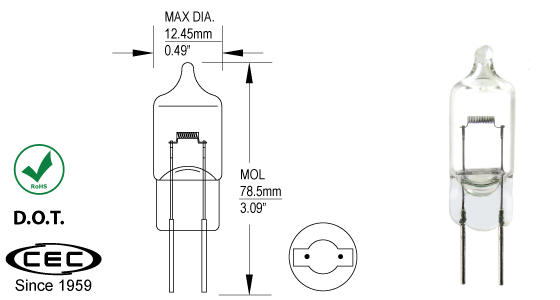

| Part # | 37.5H1 | |||||
|---|---|---|---|---|---|---|
| Description | T3 1/4 12V 37.5W Bi-pin HALOGEN | |||||
| Bulb Shape | T3 1/4 | Filament | C-6 | Base Style | Bi-Pin | |
| Glass Diameter | .43in/ 10.9mm | Lumens | 940 | Base Material | None Bi-Pin | |
| Design Wattage | 43 | MSCP † | 75 | RoHS Compliant | Yes | |
| Design Voltage | 12 | MOL ‡ | 1.61in/ 10.89mm | Rated Avg Life Hrs | 200 | |
| Design Amps | 2.93 | LCL †† | Headlight Socket | |||
| E-Mark | No | Drawing Details |
 37.5H1.pdf
|
Announcement Sheet | ||
Click below to see USMCA & Packaging information
- † MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- ‡ MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
